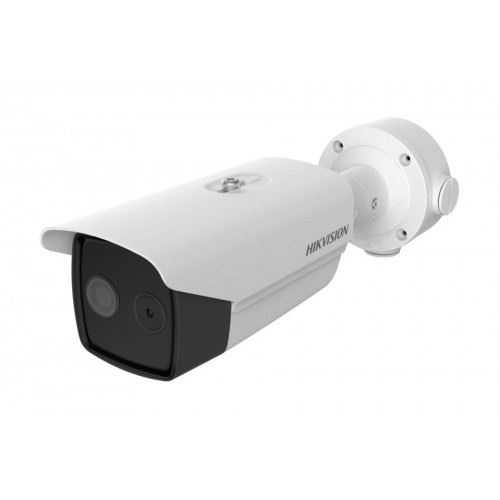

Thermal Module

Image SensorVanadium Oxide Uncooled Focal Plane Arrays

Resolution160 × 120

Pixel Interval17 μm

Response Waveband8 μm to 14 μm

NETDLess than 40 mK (@ 25 °C,F#=1.1)

Focal Length6.2 mm

IFOV2.74 mrad

Field of View25.0° × 18.7° (H × V)

Min. Focusing Distance0.6 m

ApertureF1.1

Digital Zoom×2, ×4, ×8

Optical Module

Image Sensor1/2.7" Progressive Scan CMOS

Resolution2688 × 1520, 4 MP

Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)

Shutter Speed1s to 1/100,000s

Focal Length8 mm

Field of View39.42° × 22.14°(H × V)

Aperture (Range)F1.7

WDR120 dB

Image Effect

Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel

Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel

Target ColorationYes. Supported in white hot and black hot mode.

Illuminator

IR DistanceUp to 40 m

IR Intensity and AngleAutomatically adjusted

Audible and Visual Alarm

White Light RangeUp to 40 m

Visual AlarmYes. White light used as the visual alarm, flashing frequency adjustable

Audio alarmYes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function

VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy± 8 °C (±14.4 °F)

Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main StreamThermal:25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Video CompressionMain Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG

Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Simultaneous Live ViewUp to 20 channels

User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

ClientiVMS-4200, Hik-Connect

Web BrowserLive view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +

Interface

Alarm Input2-ch inputs (0-5 VDC)

Alarm Output2-ch relay outputs, alarm response actions configurable

Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage

Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio OutputLinear Level; Impedance: 600 Ω

Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface

General

Web Client Language32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A

Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W12 VDC ± 20%: 0.65 A, max. 7.5 W

Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less

Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")

Approx. 1.76 kg (3.88 lb)

Detection Range Table/Wide Range Coverage

Detection Range for Humans (1.8×0.5m)182 m

Detection Range for Vehicles (4.0×1.4m)559 m

Recognition Range for Humans (1.8×0.5m)46 m

Recognition Range for Vehicles (4.0×1.4m)140 m

Identification Range for Humans (1.8×0.5m)23 m

Identification Range for Vehicles (4.0×1.4m)70 m

Detection Range Table/Smart Function Range

VCA Range for Humans30 m

VCA Range for Vehicles90 m

Temperature Measurement Range for Object (2m×2m)132 m

Temperature Measurement Range for Object (1m×1m)66 m

Fire Detection Range for Object (2m×2m)360 m

Fire Detection Range for Object (1m×1m)180 m
