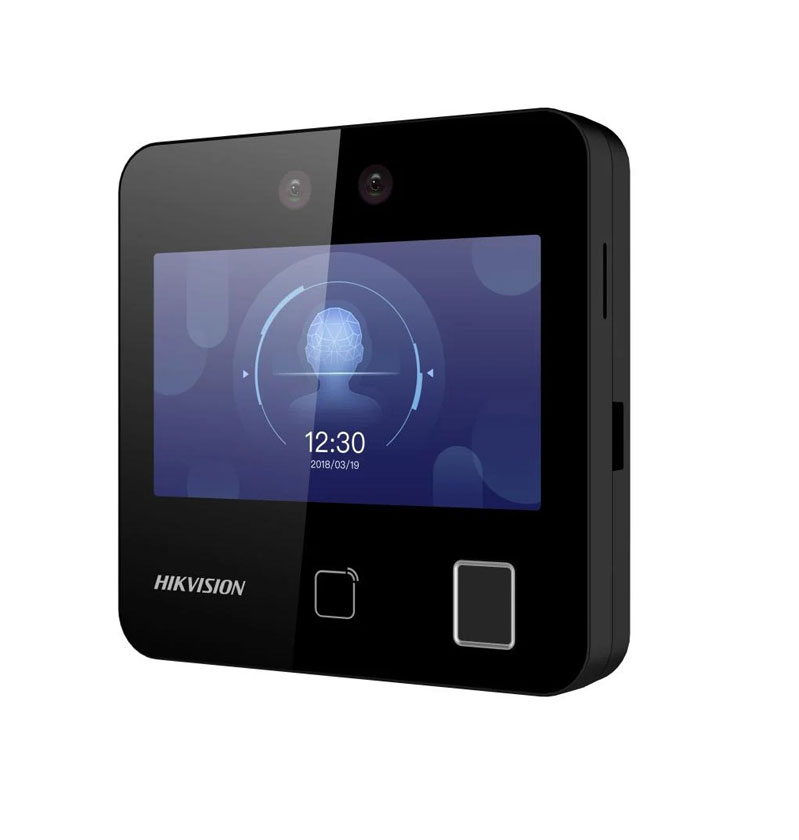

HIKVISION DS-K1T343MFX

Face Recognition Terminal



Features

 Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
 Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens,Built-in M1 card reading module
 Two-way audio with client software, indoor station, and main station; Supports TCP/IP
 Supports ISAPI, ISUP5.0
 Configuration via the web client
 Face recognition. Distance: 0.3 m to 1.5 m
 Duration < 0.2 s/User
 Accuracy rate ≥ 99%



Specification

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen
Type	LCD
Video
Lens	2
Resolution	2 MP
Audio
Audio quality	Noise suppression and echo cancellation
Network
Wired network	Support
Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1
Authentication
Card type	M1 card
Card reading frequency	13.56 MHz
General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-10 °C to 40 °C (14 °F to 104 °F)
Working humidity	0 to 90% (No condensing)
Dimensions	118.4 mm  118.4 mm 21.8 mm (4.66″  4.66″  0.86″)
Installation	Wall mounting, base mounting
Platform	Hik-ProConnect and HikCentral Professional
Function
Face anti-spoofing	Support
