Hikvision Fingerprint Access Control Terminal DS-K1T804M
As a classic masterpiece from Hikvision's deep cultivation in the security field, the DS-K1T804M fingerprint access control terminal is designed around the core concepts of "safe and reliable, full-featured, and easy to operate," deeply integrating precise access control with smart attendance management. Whether in corporate office areas, offices, industrial parks, residential building units, shops, and other scenarios, its powerful performance and flexible adaptability can build a comprehensive security barrier while greatly improving daily management efficiency, saying goodbye to the cumbersome operation of separating traditional access control from attendance.

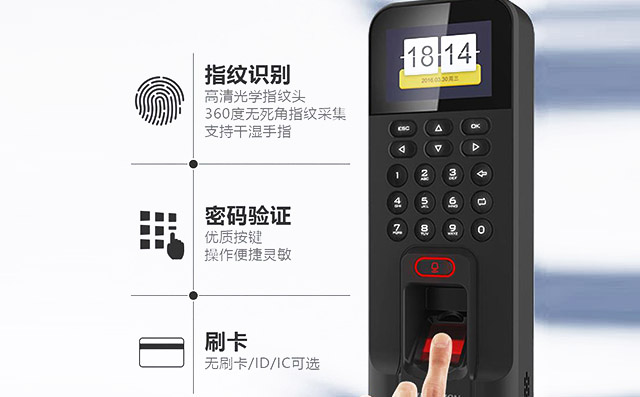

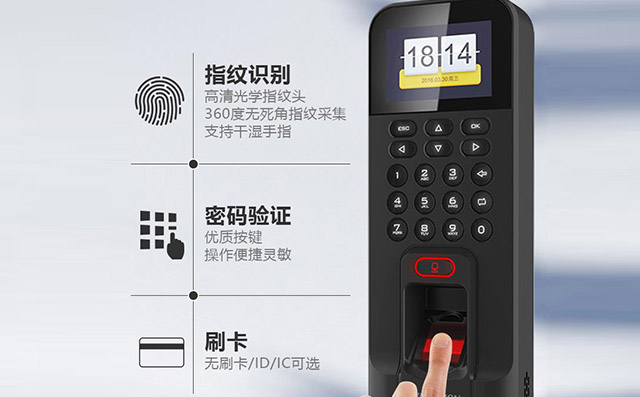

Precise Fingerprint Recognition: Millisecond-Level Verification, No Blind Spots in Security
Equipped with a professional optical fingerprint recognition module and 360-degree blind-spot-free fingerprint capture technology, it is not affected by dry or wet, coarse or fine fingers, adapting to the fingerprint characteristics of different groups of people, with industry-leading recognition accuracy. Its core performance indicators are outstanding: fingerprint verification time <1 second, false acceptance rate (FAR) ≤0.001%, false rejection rate (FRR) ≤0.01%, eliminating illegal intrusion and identity misjudgment at the root. It supports both 1:1 and 1:N (N=3000) comparison modes, can store up to 3,000 fingerprints, and a single user can enroll 10 fingerprints, meeting the usage needs of multi-person scenarios such as small and medium-sized enterprises and large parks.
It also features multiple security protection mechanisms: a tamper alarm function that immediately triggers an alarm reminder when the host is illegally removed, preventing security vulnerabilities caused by equipment damage; and a duress alarm mode, where in an emergency hostage situation, swiping a preset duress card opens the door and simultaneously uploads an alarm message, balancing personal safety and on-site control.
Integrated Access Control and Attendance: Efficient Management, Effortless and Worry-Free
Breaking down the management barrier between traditional access control and attendance, it delivers the efficient experience of "one door, unified management." A complete built-in attendance management system supports 6 attendance states: check-in, check-in, work out, off work out, overtime check-in, and overtime check-out, covering all daily attendance scenarios. It allows flexible configuration of 32 regular shifts, 32 work-hour shifts, as well as 32 attendance holiday plans and 128 access control holiday plans, precisely matching the attendance systems of different industries—whether standard working hours, shift systems, or flexible working hours, it adapts with ease.
Attendance data is automatically recorded and stored, retaining up to 150,000 attendance records and 100,000 event records, with traceable data history. No complex software operation is required; the device can automatically generate detailed attendance reports and supports exporting card data and attendance reports via the USB2.0 interface, directly compatible with office software such as Excel, so administrators do not need to compile statistics manually, greatly saving labor costs. It also supports remote platform queries of access control events and attendance data, making off-site management easy to control.
Flexible Adaptation to Multiple Scenarios: Easy Operation, Effortless Deployment

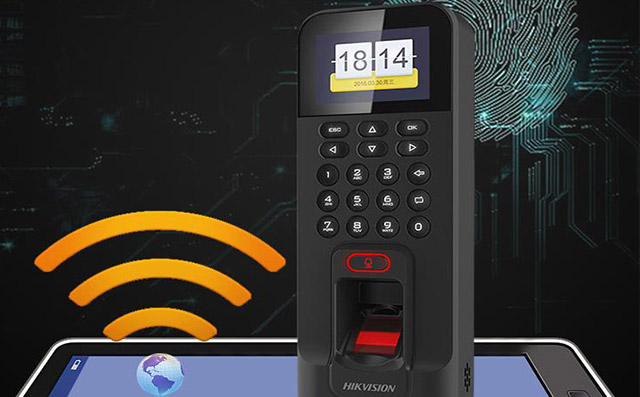

It supports both standalone offline and networked operation modes, adapting to different network environments. In offline mode, personnel, cards, and fingerprint information can be added directly on the device locally, meeting the needs of temporary deployment or unstable network scenarios; in networked mode, it supports TCP/IP wired networks (10/100Mbps adaptive) and is compatible with the HIK ehome 4.0/5.0 protocol for cross-public-network communication, allowing administrators to remotely register terminals through the backend platform, while users only need to... some versions support WiFi connection for more flexible deployment, free from network cable constraints.

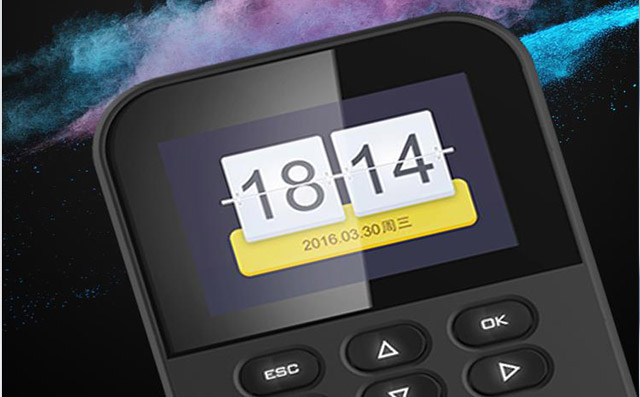

It is equipped with a 2.4-inch high-definition LCD-TFT display (resolution 320x240), with clear and prominent fonts that display the time, date, and card/fingerprint verification results in real time, making the operating status clear at a glance. It features a backlit keypad for convenient operation in low-light environments, and a reset button to quickly restore the initial state in case of device failure. It supports switching between multiple languages, covering 8 international languages including English, Vietnamese, Spanish, and French, adapting to scenarios such as multinational enterprises and foreign-related parks.

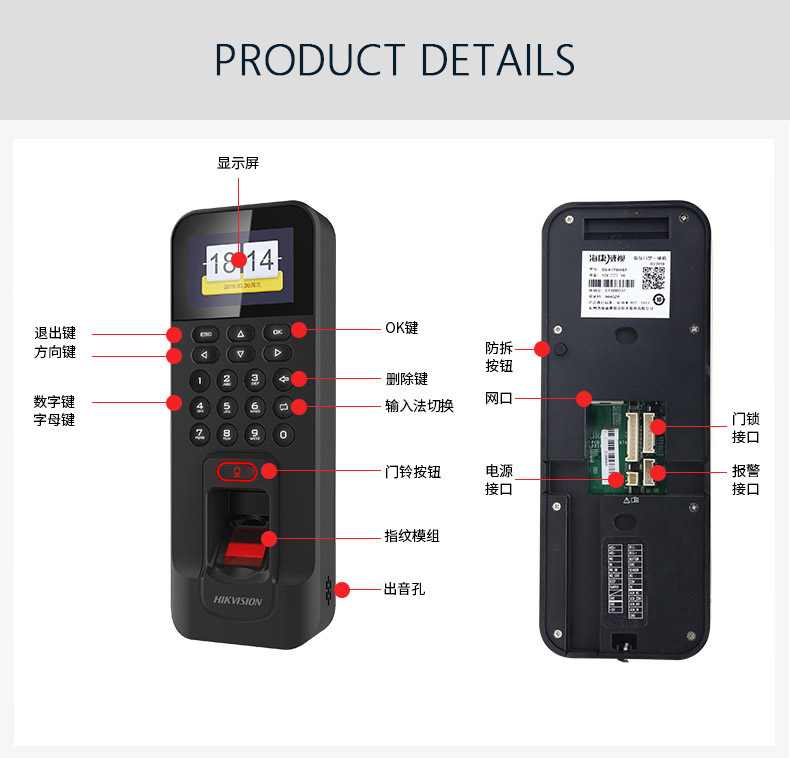

Rich interfaces and strong expandability: it has Wiegand 26/34 input and output interfaces for connecting standard card readers; 1 door button interface, 1 door sensor interface, 1 alarm input interface, as well as 1 door relay output and 1 alarm output interface, for connecting third-party alarm devices, electric locks, and other security accessories; built-in buzzer and speaker provide clear audible prompts for verification success/failure, alarms, and other states, paired with red/green dual-color status indicators for multi-dimensional feedback on device operating status.
Simple and Durable Design: Multi-Scenario Adaptation, Worry-Free Installation
The body is made of non-flame-retardant ABS material, with a fine surface texture and sturdy, durable structure. It comes standard in classic black, with optional rose gold, tech silver, and elegant white color options; the simple and stylish design blends easily into various decoration styles. The body dimensions are 205mm x 76.5mm x 37mm—thin, compact, and space-saving. It has an IP42 waterproof rating, an operating temperature range of -10℃ to 55℃, and humidity of 10% to 90% (non-condensing), adapting to various complex indoor and outdoor environments and withstanding harsh conditions such as high and low temperatures and humidity.
Installation is flexible and diverse: it supports surface mounting and metal door installation, and can also be adapted for 120 back box flush mounting. Installation steps are simple and convenient, with a detailed installation manual included, allowing professionals to complete deployment quickly. It supports third-party doorbell access, and an external buzzer device can be connected for visitor reminder functionality, balancing security and a convenient visitor experience.
Core Specifications at a Glance: Quality You Can See
- Operating system: Linux, stable and smooth operation, not prone to lag
- Storage capacity: 3000 fingerprints, 3000 valid cards, 100000 event records, 150000 attendance records
- Communication interfaces: TCP/IP, RS-485, Wiegand 26/34, USB2.0 TypeA
- Card reading performance: supports Mifare cards (including special-shaped cards), normal card reading in metal environments, reading distance 0-4.5cm, response time <1 second
- Power specifications: 12VDC/2A, stable power supply, low energy consumption
- Dimensions: 205mm x 76.5mm x 37mm, standard black, multiple colors optional
Hikvision Quality Assurance: A Choice You Can Trust
As a globally leading provider of smart IoT solutions, Hikvision has a comprehensive R&D, production, and after-sales service system. The DS-K1T804M fingerprint access control terminal has undergone rigorous environmental testing and performance verification, with reliable and durable quality. A professional after-sales team provides full-process services including technical consultation, installation guidance, and fault repair, so you can purchase with confidence and use with peace of mind.
Choosing the Hikvision DS-K1T804M fingerprint access control terminal means choosing an efficient, secure, and smart management approach—making security more worry-free and management more efficient!
FAQ
The Hikvision DS-K1T804M is an integrated fingerprint access control and time attendance terminal. It combines precise access control with intelligent time attendance management, eliminating the need for separate systems. Key functions include fingerprint recognition, card reading, time attendance recording, and multiple security alarms. It is designed for corporate offices, industrial parks, residential buildings, retail stores, and similar environments.
The DS-K1T804M delivers millisecond verification with industry-leading accuracy. It uses a professional optical fingerprint module and 360-degree capture technology, adapting to dry, wet, rough, or thin fingers. Fingerprint verification time is less than 1 second. The False Acceptance Rate (FAR) is ≤0.001% and the False Rejection Rate (FRR) is ≤0.01%. It supports 1:1 and 1:N (N=3000) matching modes and stores up to 3,000 fingerprints, with up to 10 fingerprints per user.
The DS-K1T804M offers ample storage and multiple communication options. It stores 3,000 fingerprints, 3,000 legitimate cards, 100,000 event records, and 150,000 attendance records. Communication interfaces include TCP/IP, RS-485, Wiegand 26/34, and USB 2.0 Type A. It also supports HIK ehome 4.0/5.0 protocols, and some versions support Wi-Fi. The built-in Linux operating system ensures stable, smooth operation.
The DS-K1T804M supports flexible installation: surface mount, metal door mount, or flush mount with a 120 back box. It has an IP42 waterproof rating and operates in temperatures from -10°C to 55°C and humidity from 10% to 90% (non-condensing). The slim, compact design (205mm x 76.5mm x 37mm) saves space and adapts to various indoor and outdoor environments.
The DS-K1T804M features a built-in time attendance system that supports six attendance statuses: check-in, check-out, overtime check-in, overtime check-out, work-out, and work-in. It offers flexible configuration with 32 normal shifts, 32 work-hour shifts, 32 attendance holiday plans, and 128 access control holiday plans. Attendance data is automatically recorded and stored, and detailed reports can be generated without complex software. Data can be exported via USB 2.0 to Excel and other office software, and remote platform queries are supported.
The DS-K1T804M includes multiple security protection mechanisms. A tamper alarm triggers immediately if the device is illegally removed, preventing security breaches. A duress alarm mode allows a pre-set duress card to open the door while simultaneously uploading an alarm message, ensuring personal safety and on-site control. It also has red/green dual-color status indicators and a built-in buzzer and speaker for clear audio feedback on successful or failed verification and alarms.
