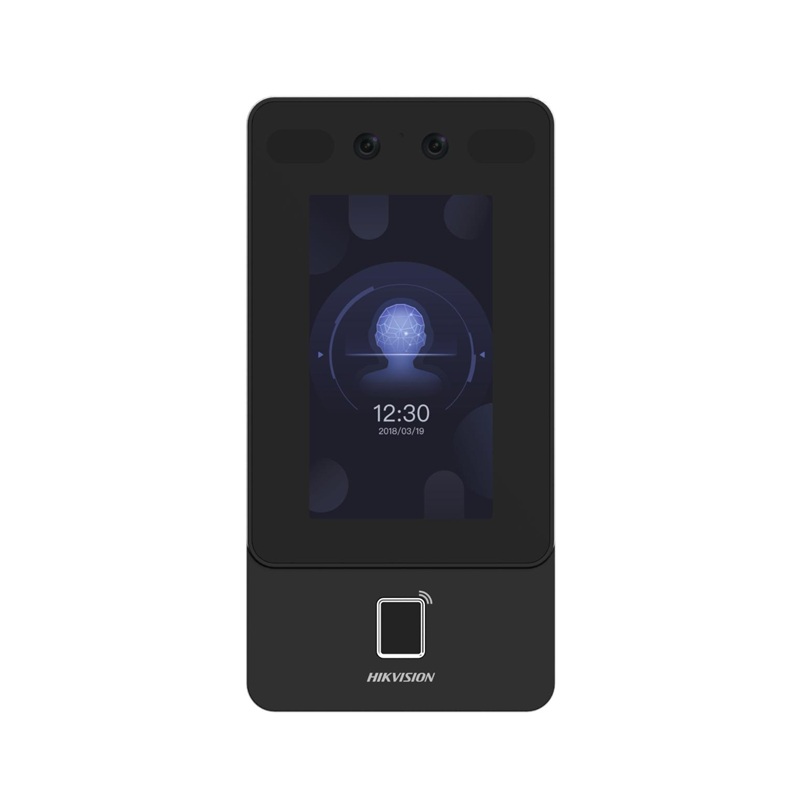

HIKVISION DS-K1T342MFWX Face Fingerprint Card Recognition Terminal

The HIKVISION DS-K1T342MFWX Face Fingerprint Card Recognition Terminal is a high-performance identification device designed for modern access control systems, integrating face recognition, fingerprint recognition, and card reading functions to provide comprehensive, multi-layered security authentication solutions. As part of the Value Series, this product is known for its cost-effectiveness and is suitable for various environments such as commercial buildings, offices, residential communities, schools, and hospitals, ensuring convenient and secure access management.

Product Features and Advantages

Multi-Mode Recognition Technology

• Face Recognition: Equipped with a 2-megapixel wide-angle lens, supporting a recognition distance of 0.3 m to 1.5 m, with a recognition speed of less than 0.2 seconds per user and an accuracy rate of over 99%. It effectively recognizes faces even when wearing masks, enhancing practicality during pandemic periods.
• Fingerprint Recognition: Maximum storage capacity of 3000 fingerprints, providing fast and reliable biometric authentication, reducing security risks associated with traditional keys or passwords.
• Card Reading Function: Built-in M1 card reading module, supporting 13.56 MHz frequency, with maximum storage of 3000 cards, allowing users to authenticate using smart cards conveniently.

High Performance and Smart Functions

• Large Storage Capacity: Supports up to 1500 faces, 3000 fingerprints, and 3000 cards, meeting the user management needs of medium to large-scale venues.
• Anti-Spoofing Technology: Built-in face anti-spoofing function, effectively preventing photo or video欺骗, enhancing system security.
• Two-Way Audio Communication: Supports two-way audio calls with client software, indoor stations, and main stations, facilitating remote communication and management.
• Flexible Network Connectivity: Supports TCP/IP wired network and Wi-Fi (2.4 G, 802.11b/g/n), providing stable data transmission and remote control capabilities.

User-Friendly Design

• 4.3-inch LCD Touch Screen: Utilizes capacitive touch technology, offering intuitive and easy operation for users to perform settings and authentication effortlessly.
• Multi-Language Support: Built-in languages include English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), and Korean, suitable for international environments.
• Easy Configuration: Configurable via web client, eliminating complex installation steps and reducing maintenance costs.

Specifications

Display and Video

• Screen Size: 4.3 inch
• Operation Method: Capacitive touch screen
• Screen Type: LCD
• Lens: 2-megapixel wide-angle lens
• Resolution: 2 MP

Audio and Network

• Audio Quality: Features noise suppression and echo cancellation for clear communication.
• Wired Network: Supported
• Wi-Fi: Supports 2.4 G, 802.11b/g/n standards

Interfaces and Authentication

• Network Interface: 1 RJ-45, 10/100 M self-adaptive
• Lock Control: 1
• Exit Button: 1
• Door Contact Input: 1
• TAMPER: 1
• RS-485: 1 (Half duplex, HIKVISION proprietary)
• Wiegand: 1 (Supports Hik 26bit and Hik 34bit)
• USB: 1
• Card Type: M1 card
• Card Reading Frequency: 13.56 MHz

General Specifications

• Power Supply: 12 VDC, 1 A (power adapter included)
• Working Temperature: -30°C to 60°C (-22°F to 140°F)
• Working Humidity: 0% to 90% (No condensing)
• Dimensions: 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
• Installation: Wall mounting
• Gross Weight: 0.93 kg (2.05 lb)
• Net Weight: 0.36 kg (0.79 lb)

Platforms and Protocols

• Supported Platforms: Hik-ProConnect and HikCentral Professional
• Protocol Support: ISAPI and ISUP5.0, ensuring compatibility with other systems.

Usage Scenarios

• Commercial Buildings and Offices: Provides efficient employee access management, combining face, fingerprint, and card functions to enhance security levels.
• Residential Communities: Suitable for residential access control systems, allowing residents to use multiple authentication methods conveniently, improving community safety.
• Educational Institutions: Schools can use this device to manage student and staff access, with mask recognition support to adapt to pandemic needs.
• Medical Facilities: Hospitals can ensure only authorized personnel enter sensitive areas, with two-way audio facilitating emergency communication.
• Retail and Public Venues: Applicable for access control in shops or public buildings, offering flexible user management solutions.

Unique Value

HIKVISION DS-K1T342MFWX integrates advanced biometric technology with smart functions, delivering professional-grade security solutions at a competitive price. Its fast recognition speed, high accuracy, and multi-language support make it an ideal choice for global markets. Whether for small businesses or large institutions, this product simplifies access management, reduces operational costs, and ensures the highest level of security.
