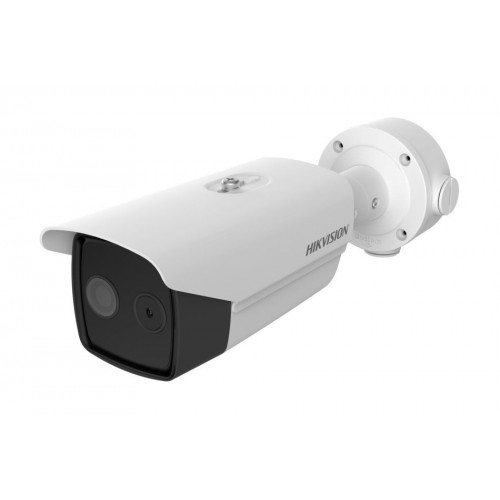

Hikvision DS-2TD2617B-6/PA Thermal Imaging

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution: 160 x 120
• Pixel Interval: 17 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 40 mK (@ 25 °C, F#=1.1)
• Focal Length: 6.2 mm
• IFOV: 2.74 mrad
• Field of View: 25.0° x 18.7° (H x V)
• Min. Focusing Distance: 0.6 m
• Aperture: F1.1
• Digital Zoom: x2, x4, x8

Optical Module

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 2688 x 1520, 4 MP
• Min. Illumination: Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
• Shutter Speed: 1s to 1/100,000s
• Focal Length: 8 mm
• Field of View: 39.42° x 22.14° (H x V)
• Aperture (Range): F1.7
• WDR: 120 dB

Image Effect

• Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
• Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
• Target Coloration: Yes. Supported in white hot and black hot mode.

Illuminator

• IR Distance: Up to 40 m
• IR Intensity and Angle: Automatically adjusted

Audible and Visual Alarm

• White Light Range: Up to 40 m
• Visual Alarm: Yes. White light used as the visual alarm, flashing frequency adjustable
• Audio Alarm: Yes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function

• VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
• Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy: ± 8 °C (±14.4 °F)
• Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

• Main Stream: Thermal: 25 fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240); Optical: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720); Optical: 60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
• Sub Stream: Thermal: 25 fps (704 x 576, 352 x 288, 320 x 240); Optical: 50 Hz: 25 fps (704 x 576, 352 x 288, 176 x 144); Optical: 60 Hz: 30 fps (704 x 480, 352 x 240, 176 x 120)
• Video Compression: Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
• Audio Compression: G.711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• API: ISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live View: Up to 20 channels
• User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
• Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
• Client: iVMS-4200, Hik-Connect
• Web Browser: Live view (plug-in allowed): Internet Explorer 11; Live view (plug-in free): Chrome 57.0, Firefox 52.0; Local service: Chrome 57.0, Firefox 52.0

Interface

• Alarm Input: 2-ch inputs (0-5 VDC)
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
• Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output: Linear Level; Impedance: 600 Ω
• Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface

General

• Web Client Language: 32 languages — English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power: PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A; DC 12V, 0.65A
• Power Consumption: PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W; 12 VDC ± 20%: 0.65 A, max. 7.5 W
• Work Temperature/Humidity: From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
• Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension: 358.3 mm x 113.5 mm x 115.2 mm (14.10" x 4.47" x 4.53")
• Weight: Approx. 1.76 kg (3.88 lb)

Detection Range Table / Wide Range Coverage

• Detection Range for Humans (1.8 x 0.5 m): 182 m
• Detection Range for Vehicles (4.0 x 1.4 m): 559 m
• Recognition Range for Humans (1.8 x 0.5 m): 46 m
• Recognition Range for Vehicles (4.0 x 1.4 m): 140 m
• Identification Range for Humans (1.8 x 0.5 m): 23 m
• Identification Range for Vehicles (4.0 x 1.4 m): 70 m

Detection Range Table / Smart Function Range

• VCA Range for Humans: 30 m
• VCA Range for Vehicles: 90 m
• Temperature Measurement Range for Object (2 m x 2 m): 132 m
• Temperature Measurement Range for Object (1 m x 1 m): 66 m
• Fire Detection Range for Object (2 m x 2 m): 360 m
• Fire Detection Range for Object (1 m x 1 m): 180 m
